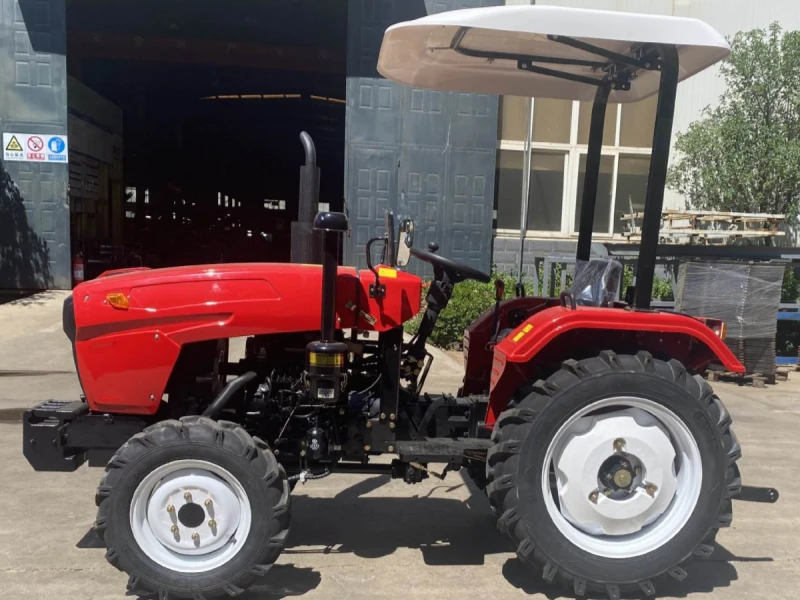

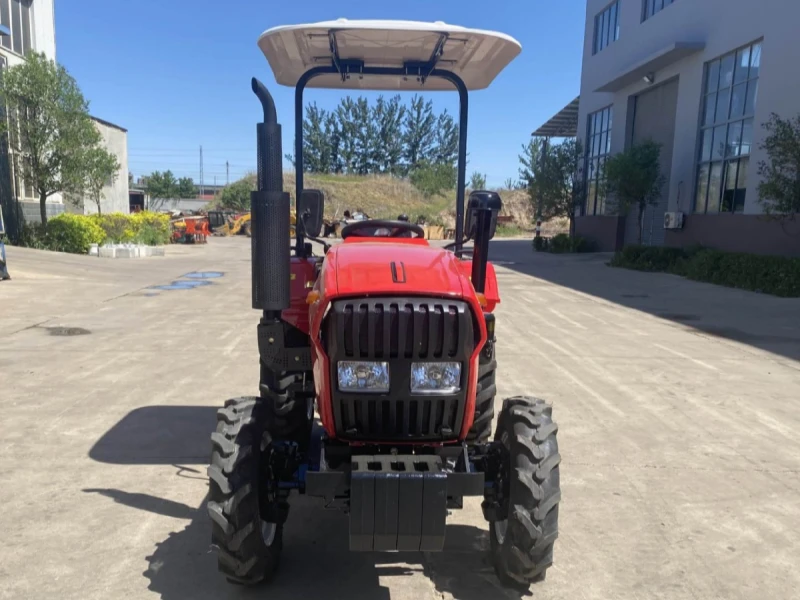

The ALLIAN AL-300/304 wheeled tractor is a cutting-edge new product, powered by the N390T three-cylinder diesel engine—renowned for its robust output and reliable performance.
Designed for versatility, this tractor excels in both paddy fields and drylands. Its modular component design allows for customizable assembly, ensuring it meets diverse user needs across different farming scenarios.
To align with global market standards, key performance-enhancing features have been integrated, including four-wheel drive, hydraulic power steering, creeper gear, and a two-speed PTO (Power Take-Off). These upgrades significantly boost operational efficiency and adaptability.
Boasting economical fuel consumption, user-friendly operation, a sleek appearance, compact structure, and easy maintenance, the tractor is engineered for practicality. It offers 8 forward gears and 2 reverse gears, with a speed range of 1.43 to 31.3 km/hr, paired with a linkage-type double-acting clutch for smooth power transmission. When matched with appropriate implements, it handles a full range of farming tasks: rototilling, plowing, harrowing, seeding, inter-row cultivation, and harvesting. Additionally, it can be configured as a transport unit by hitching a trailer, making it an ideal choice for small to medium-sized farms.
- Dual-function clutch
- Two-speed PTO
- Power steering system
- Safety start switch
- Fiberglass hood
- Integrated instrument panel
- High-quality seating
- Safety belt
- Folding ROPS (Roll-Over Protective Structure)
- Sun shade
- Spring-loaded seat
- Turf tires
- Industrial tires
- EPA-compliant engine
- Hydraulic outlet
Parameters:
Tractor Parameters |
Model |
AL-300A |
Drive Type |
2WD |
Overall Dimensions (L×W×H, mm) |
3235×1485×1536 (Height to steering wheel) |
Wheel Track |
Front |
1100 (Usually used)/1200, 1300, 1400 |
Rear |
1100 (Usually used)/1200, 1300, 1400 |
Wheel Base (mm) |
1705 |
Ground Clearance(mm) |
Under Front Axle |
420 |
Under Rear Axle |
378 |
Rated Traction Force (N) |
In Paddy Fields |
4200 |
In Dry Fields |
6300 |
Construction Mass (Kg) |
1240 |
Min. Turning Radius (m) |
2.5 |
Theoretical Speed (Km/h) |
Forward |
1.29, 1.73, 3.34, 5.67, 6.7, 8.85, 17.31, 28.85 |
Reverse |
1.67, 2.87 |
Engine Specifications |
Model |
ZN390T |
Type |
3-cylinder, upright inline cylinder, radiator cooling, 4-stroke cycle, direct-injection |
Rated Power (Kw/hp) |
22/30.10 |
Rated Fuel Consumption (g/Kw/h) |
2525 |
Rated Speed (rpm) |
2500 |
Bore×Stroke (mm) |
90×115 |
Total Displacement (L) |
1.812 |
Drive System |
Clutch |
Single |
Gear Box |
4(+1)×2-planar 3-shaft for main transmission, epicyclic gearing for auxiliary transmission |
Main Drive |
One Pair of Spiral Bevel gears |
Differential |
Bevel Differential |
Differential Lock |
Jaw Lock |
Final Transmissions |
Spur Gear, External Gearing |
Travelling Mechanism |
Tyre |
Front |
5.00-15 |
Rear |
11.2-24 |
Steering Gear |
Hydraulic steering |
Brake |
Disk type |
