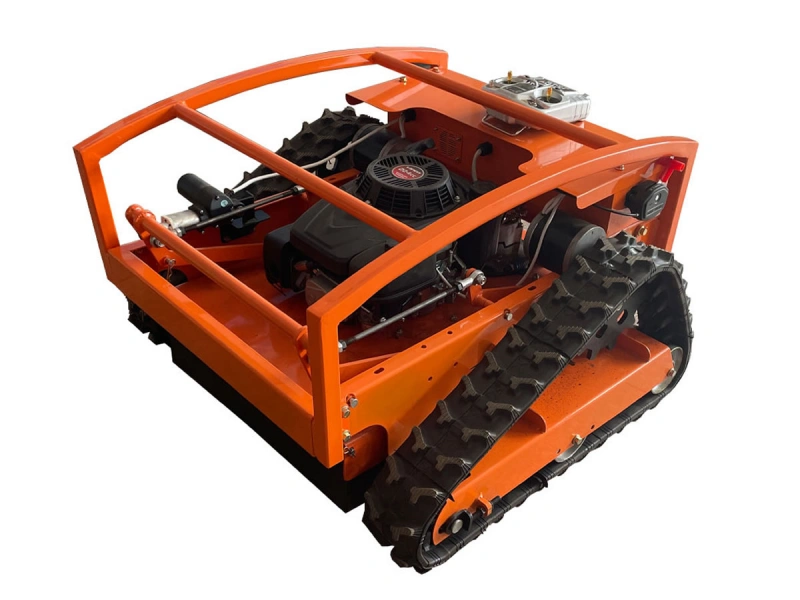

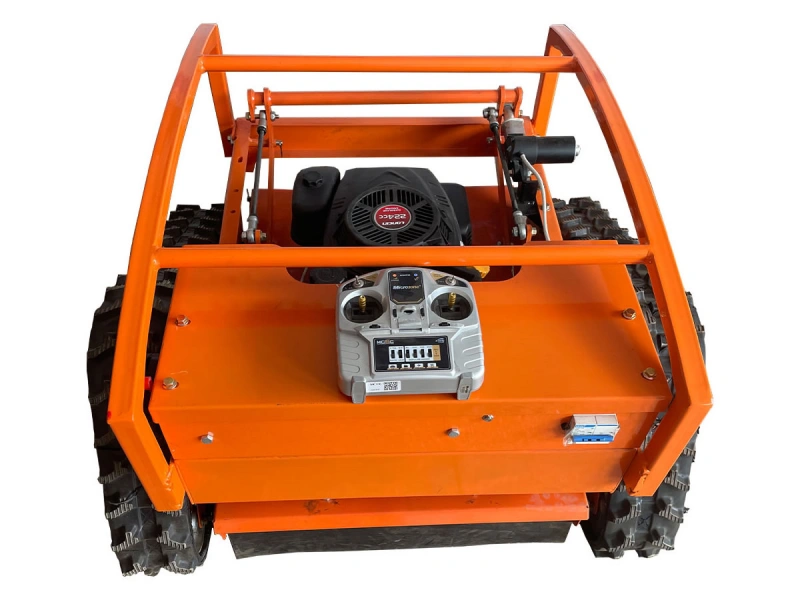

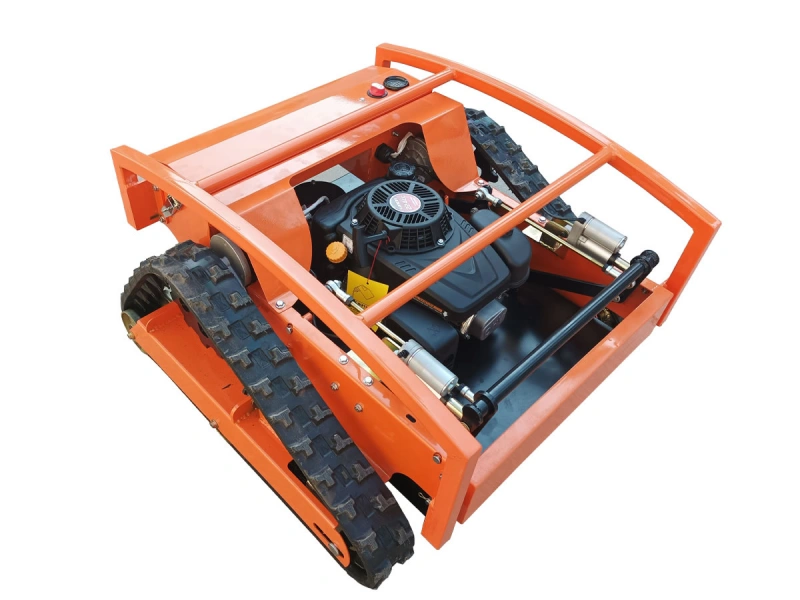

ALK55 Remote Control Lawn Mower

1. Power and Mobility

The mower is powered by a Loncin gasoline engine with an oil-electric hybrid system; the SKK2 model includes an integrated power generation and supply system that charges automatically during operation. Driven by a motor, it features zero-angle turning capability, allowing forward, backward, and turning mowing movements. Its track design combines an internal steel frame with external engineering rubber, ensuring wear resistance and durability for long-term use.

2. Control and Adjustment

Operation is managed via an industrial remote control device, offering simplicity, low failure rates, and a control range of up to 4 meters. Key adjustments include a mowing height range of 3-12 cm, which can be easily modified as needed. Additionally, the mowing speed is adjustable through the remote control, providing flexibility for different grass conditions.

3. Design and Application

With a low-profile fuselage and tank-style structure, the mower excels in climbing slopes and navigating ditches. This design makes it particularly suitable for diverse environments such as green spaces, orchards, hilly areas, and terraced fields. Its versatility ensures efficient mowing performance across various terrain types.

Inquiry

1. Technical parameters:

serial number	The name of the project		unit	Parameter value
1	host	Model		ALK55
		Dimensions (L×W×H)	mm	900900560
		Structural quality	kg	120
		Track width	mm	120
2	Supporting power	Manufacturers		Loncin General Dynamics Co., Ltd
		Model name		LC1P75F-1
		Structural type		Horizontal bar four-stroke
		Maximum power	Ps	9
		Rated speed	r/min	3600
		Type of fuel		gasoline
		Average fuel consumption	L/h	1-1.5
		Displacement	cc	224
3	Travel motor	Rated power	Kw	1.2
		Operating voltage	V	24
		rotate speed	r/min	1000~3000
		Walking speed	Km/h	0~5 adjustable
		Remote control distance	m	≤200
		The working slope	Degree ·	≤40
4	dynamo	Rated power	KW	1.5
5	accumulator	Battery type		Dry batteries
		Remote control of battery voltage	V	24
		Walking battery voltage	V	24
		Charging type		The generator is automatically charged when it is working
6	Matching mowing knives	Number of knives	slice	2
		Tool speed	r/min	2000-3000
		Mowing width	mm	550
		Grass height	mm	30~120 adjustable

2. Configuration and features:

(1) Power is supplied by a gasoline engine with an oil-electric hybrid system. The SKK55 model comes with a built-in power generation and supply system, which charges automatically during operation.

(2) Driven by an electric motor, it can turn around at zero angle and perform mowing operations while moving forward, backward, or turning.

(3) Control is achieved through an industrial remote control device, featuring simple operation, low failure rates, and a remote control range of 200 meters.

(4) The tracks adopt a design with internal steel frame wires and external engineering rubber, ensuring wear resistance and durability.

(5) With a low-profile, tank-style fuselage, it excels at climbing slopes and crossing ditches. It is particularly suitable for mowing in green spaces, orchards, hilly areas, and terraced fields.

(6) Adjustments: The grass can be adjusted between 3-12 cm, and the mowing speed is adjustable via remote control.
